Linear Heat Detection

LHD N45-Series

The New Standard for Fiber Optic Linear Heat Detection

AP Sensing's LHD-N45-Series

AP Sensing’s third generation of fiber optic Linear Heat Detection (LHD) systems delivers unmatched performance with up to 16 km per channel certified distance range and 4 channels, ensuring optimal fire detection and temperature monitoring.

Performance

  • Fastest fire detection due to significantly improved measurement times down to 1 second.
  • Longest certified range in the market with up to 16 km per channel and up to 4 channels for all distance ranges.
  • Simultaneous measurement with two differently optimized configurations for precise temperature monitoring and faster fire detection.

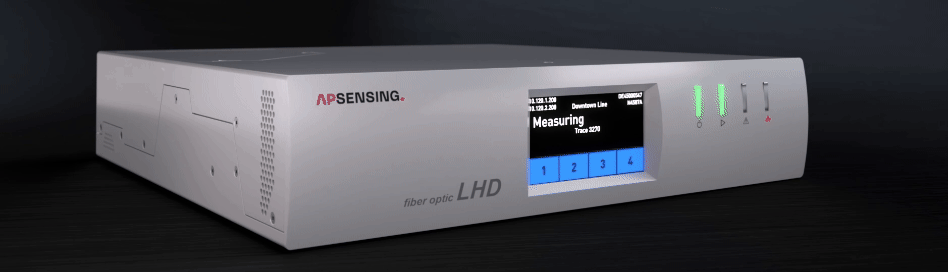

Reliability

  • Decades of engineering experience ensures MTBF of 35 years.
  • Rugged housing design for outdoor and heavy-duty applications.
  • Extensive testing for shock, vibration and temperature stress.

Safety is Key

  • EN54-22, UL521 and FM approvals.
  • SIL-2-rated system for guaranteed  functional safety.
  • Certified according to ATEX and IECEx for safe operation in even explosive environment.
  • State-of-the-art IT security standards for centralized, secure user access and integration.

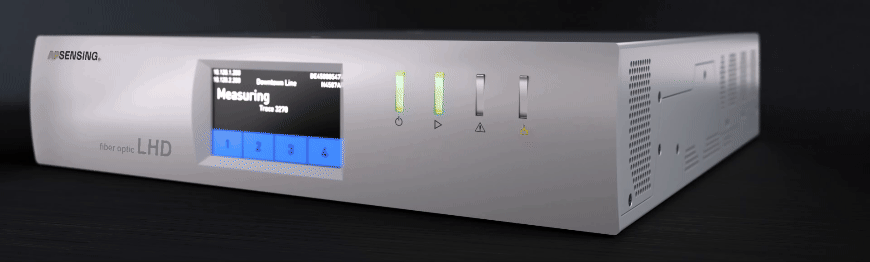

Ease of Use

  • Integrated web server requiring no extra software installation, our fiber optic Linear Heat Detection (LHD) is configurable via web browser.
  • Automatic, one-click validation of compliance configuration settings for time savings.

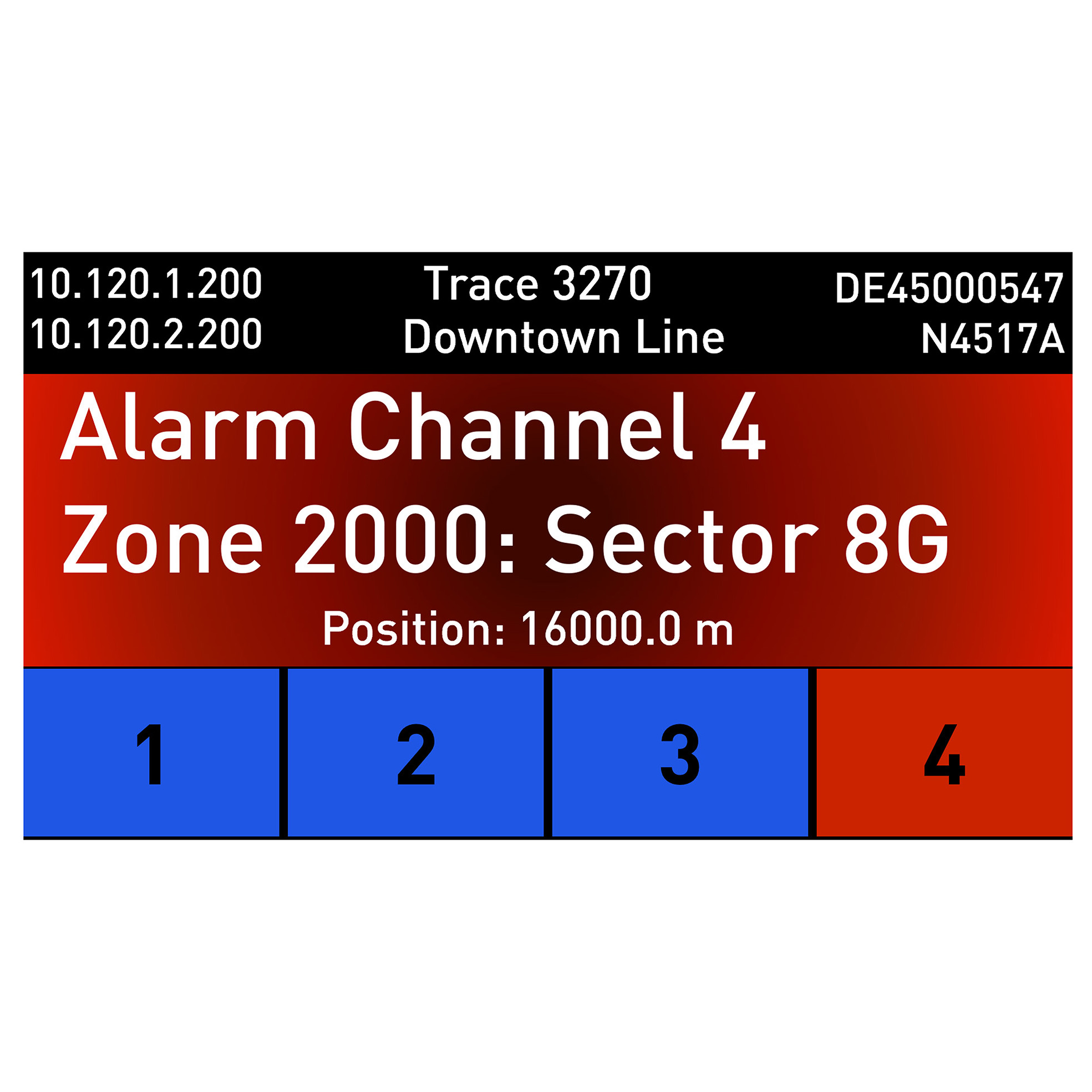

  • Up to 98 integrated relay contacts and flexible zone and alarm configurations, with 2,000 alarm zones per channels.

Product Features

Advantages_red
Highly scalable system architecture
Checklist_red
Offering a range of housing options to meet diverse needs, all suitable for outdoor and heavy-duty applications
Project_Management_red
Measurement times down to 1 second enable even faster fire detection
DAS-trace-utility-red
Two simultaneous temperature measurements allow precise temperature monitoring
Video: LHD N45-Series

The LHD N45-Series: Ideally Suited for Industrial Applications

Get an inside look at AP Sensing's N45-Series with its unmatched performance, reliability, safety, and ease of use. Two simultaneous temperature measurements allow fastest fire detection and precise temperature monitoring. Furthermore, significantly improved measurement times down to 1 second enable even faster fire detection.

  • Transportation Sector

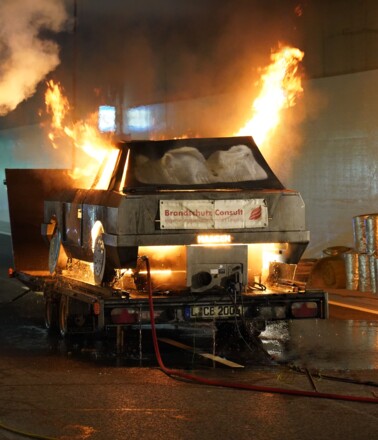

    Road and rail tunnels, metro stations, parking garages and aircraft hangars
  • Production & Storage Facilities
    Coal storage, battery storage and warehouse facilities, conveyor belts and production areas, tank farms, food industry, refineries and chemical plants, false floors and ceilings
  • Energy Sector
    Photovoltaic systems, battery storage, cable trays and transformers
  • Ships & Vessels
    Container ships & ferries
Application map of fire detection with fiber optic LHD
Downloads
Product Flyer: LHD N45-Series
pdf  •  899.1 KB

Find all our brochures, application flyer, product flyers, videos and further case studies in our media library.

Get in Touch With Our Experts

With a proven track record and continued innovation, AP Sensing offers a completely integrated, end-to-end solution made in Germany. Our team works together with you to select the right combination of technologies to fit your requirements.

About Linear Heat Detection (LHD) Technology

A fiber optic LHD uses Ø 3 to 4mm fiber optic sensor cables, typically over lengths of several kilometers, that function as linear temperature sensors. These systems are truly distributed, i.e. respond to heat at any point along the cable equally. The result is a continuous temperature profile along the entire length of the sensor cable. According to the most important standards the fiber optic LHD is approved as a special detector in fire protection system.

FAQs

What Is the Maximum Distance That the AP Sensing’s Linear Heat Detection (LHD) N45-Series Can Cover?

The N45-Series offers the longest certified distance range available on the market and can cover up to 16km with its 4-channel configuration.

What Makes the N45-Series Suitable for Use in Harsh and Explosive Environments?

The N45-Series has undergone extensive testing for durability, including shock, vibration, and temperature stress according to multinational standards for fire protection. It also has a SIL-2 safety rating and complies with ATEX and IECEx standards, making it save for operations even in explosive environment.

What Are the Key Benefits of Using the Fiber Optic Linear Heat Detection (LHD) N45-Series?

Key benefits include an easy-to-install, single Ø 3 to 4mm passive sensor cable that is resistant to electromagnetic interference (EMI), maintenance-free-operations, cost-effectiveness for long-distance coverage, precise event location detection, and the ability to monitor fire’s magnitude and spread.
