DTS N45-Series
The AP Sensing DTS N45-Series is a state-of-the-art Distributed Temperature Sensing (DTS) system designed specifically to meet the most demanding applications. Utilizing advanced Raman technology, our product offers unmatched accuracy, range, as well as durability, these qualities make it ideal for long-term critical temperature monitoring across a variety of conditions. With a measurement range of up to 70km, robust cyber security, and a user-friendly interface, our DTS N45-series stands out as a premium solution in the industry.

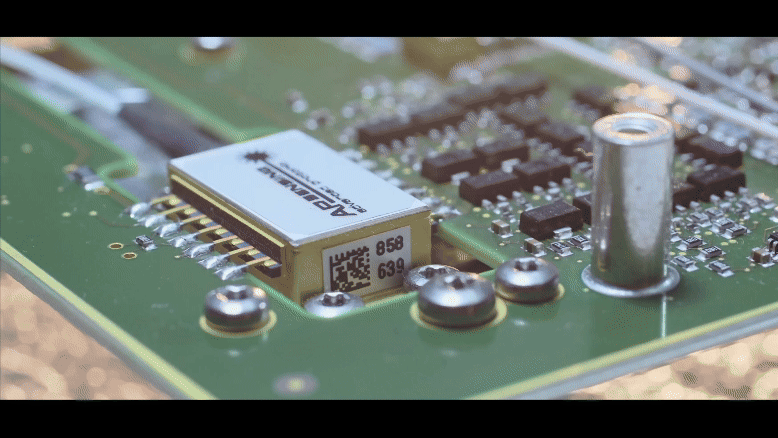

Performance
- Extended Measurement Range: The advanced RAMAN-DTS system offers the longest measurement range in its class, reaching up to 70 km for extensive applications.
- High Precision at Short Distances: Achieve optimal performance at shorter distances with an impressive spatial resolution of 0.5 meters, ensuring detailed monitoring.
- Fast Response Times: Experience rapid measurements with response times as short as 1 second, allowing for real-time data and quick decision-making.
- Unmatched Design: Our patented code correlation technology delivers a signal-to-noise ratio (SNR) 10 times greater than traditional DTS instruments, ensuring superior accuracy and reliability.
Reliability
- Highest Measurement Accuracy: RAMAN technology eliminates cross-talk from physical parameters like strain, delivering precise and trustworthy data under all conditions.
- Engineered for Long Life: MTBF of 35 years ensuring long-term safety and stability.
- Single Receiver Design: AP Sensing's single avalanche photo diode (APD) architecture ensures consistent, error-free measurements, outperforming traditional DTS systems.
- Long-Term Stability: Engineered for durability, our technology maintains performance and accuracy even after years of operation in harsh environments.
Safety is Key
- Proven Expertise: With over 40 years of experience, our systems boast the industry’s lowest failure rate and hold the most comprehensive certifications.
- State-of-the-Art IT Security Standards: Virtually impossible to exploit, providing maximum security in sensitive environments.
- Safe for Hazardous Areas: Low optical output power allows deployment in even the most dangerous EX-zones.
- German Engineering: All instruments are meticulously designed and manufactured in Germany for superior quality and safety.
Ease of Use
- Intuitive Interface: Web-based platform simplifies configuration and system setup for hassle-free operation.

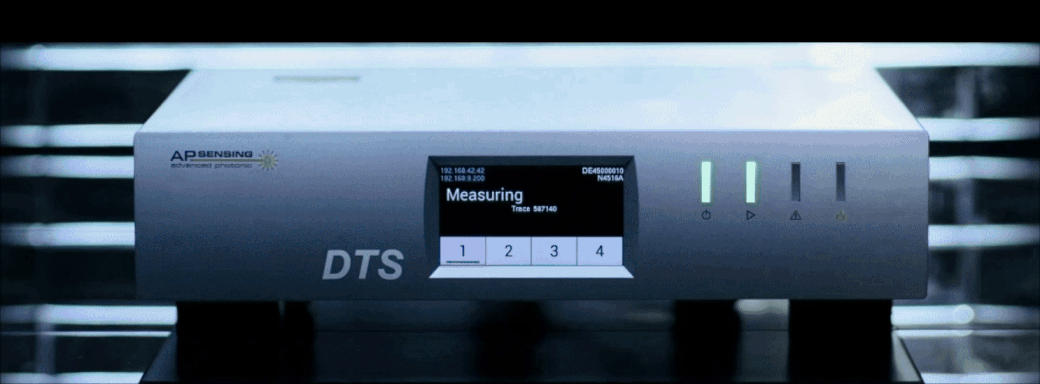

- Quick Monitoring: A high contrast, color display provides critical information at a glance for efficient monitoring.
- One-Click Auto Set-Up: Automatically inspects all channels and starts configuration, saving valuable time.

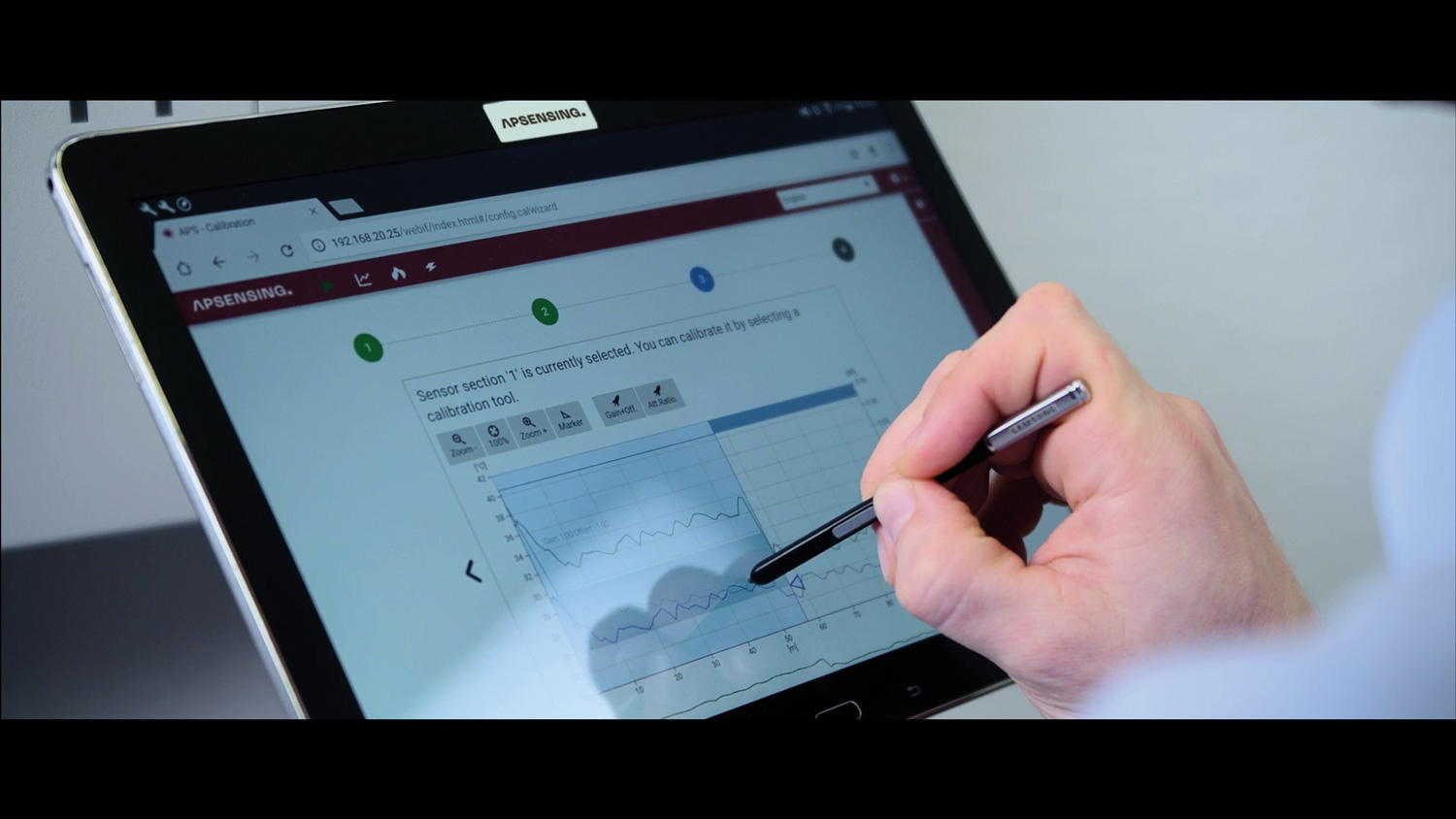

- Simple Calibration: A Calibration Wizard for easy temperature trace setup via the Web interface, ensuring fast adjustments per drag & drop.
- Flexible Configurations: Available in rack-mounted, outdoor, and integrable setups to fit any system.
Product Features
Designed for the Most Demanding Applications
The DTS N45-Series : Ideally Suited for Industrial Applications
Get an inside look at how customer requirements led to the development of a completely new and improved DTS, with new levels of temperature sensing and asset monitoring, breaking limits of time, space and accuracy, which now offer longest measurement range with 70 km. And the best performance at shorter lengths with fast measurement times down to 1 second.
Find all our brochures, application flyer, product flyers, videos and further case studies in our media library.
With a proven track record and continued innovation, AP Sensing offers a completely integrated, end-to-end solution made in Germany. Our team works together with you to select the right combination of technologies to fit your requirements.
About Raman-Based DTS Technology
Raman-based Distributed Temperature Sensing (DTS) utilizes optical fibers to deliver continuous and accurate temperature profiles across distances of several dozen kilometers. By analyzing the intensity ratio between the Stokes and anti-Stokes bands of Raman scattering, this method effectively calculates temperature along the fiber. Raman-Distributed Temperature Sensing (DTS) systems are known for their high reliability, as they are unaffected by strain on the sensor fiber, ensuring accurate measurements even under mechanical stress. Using Optical Time Domain Reflectometry (OTDR), Raman-DTS is ideal for large-scale applications requiring precise, spatially resolved temperature monitoring.
FAQs
What Is the Measurement Range of the DTS N45-Series?
Our Distributed Temperature Sensing (DTS) N45-Series offers a maximum measurement range of up to 70 km, making it ideal for extensive monitoring needs.
How Accurate is the Temperature Measurement?
The system uses Raman technology hence provides absolute measurements accuracy, with no interference from other parameters like strain.
Can the System be Installed Outdoors?
Yes, the DTS N45-Series is designed for both indoor and outdoor installations and can withstand extreme conditions, from deserts to arctic environments.
The system uses Raman technology hence provides absolute measurements accuracy, with no interference from other parameters like strain.
