Harnessing Geothermal Energy for Sustainable Power Generation
Developing and exploring geothermal resources is essential for advancing the clean energy transition. As geothermal energy becomes a more prominent part of the renewable landscape, ensuring its efficient and sustainable utilization is crucial. Effective monitoring then plays a critical role in achieving this by enabling reliable, cost-effective extraction of geothermal energy.
In addition, volcanic areas – integral parts of geothermal ecosystems – present both energy opportunities and crucial monitoring requirements. Comprehensive monitoring of volcanic activity, including seismic data on magma movement and hydrothermal fluid flows, offers valuable insights into subsurface processes. This data supports timely warnings and enhances safety measures, helping to mitigate the risks associated with eruptions.
With real-time data on subsurface conditions, temperature gradients, and reservoir performance, geothermal monitoring supports the accelerated development and optimization of geothermal projects. This not only enhances geothermal energy’s reliability but also facilitates its integration into the global energy mix, paving the way for a sustainable and resilient energy future.
Key Technical and Environmental Obstacles in Geothermal Monitoring
Geothermal monitoring faces several key challenges that impact the efficiency and effectiveness of geothermal energy projects:
- Accurately measuring and interpreting subsurface conditions, such as temperature gradients and reservoir pressure, which are crucial for optimizing resource extraction and ensuring system stability.
- High-cost istallation and equipment maintenance due to the harsh and often remote environments where geothermal resources are located.
- The need for long-term, continuous monitoring introduces complexities in data management and analysis, as reliable and consistent data collection is essential for predicting and managing reservoir behaviour over time.
Addressing these challenges requires advanced monitoring technologies and methodologies that can withstand extreme conditions and provide precise, real-time data to support the sustainable development of geothermal energy.
The Need for Geothermal Monitoring
The need for geothermal monitoring is critical to the successful development and management of geothermal energy resources. As geothermal energy becomes a more prominent player in the clean energy transition, precise and continuous monitoring is essential for optimizing resource extraction and ensuring system efficiency.
Monitoring provides valuable insights into subsurface conditions, such as temperature distribution and reservoir pressure, which are vital for assessing the viability and performance of geothermal systems.
It helps in managing the thermal and hydraulic behavior of geothermal reservoirs, preventing potential issues such as resource depletion or reservoir damage. Moreover, robust monitoring supports the long-term sustainability of geothermal projects by enabling informed decision-making and adapting strategies based on real-time data.
In essence, comprehensive monitoring is fundamental to maximizing the benefits of geothermal energy, ensuring its reliability, and contributing to a more sustainable energy future.
AP Sensing's Fiber Optic Monitoring Solutions for Geothermal Systems
As energy demand continues to rise, the need for sustainable energy production, such as geothermal, becomes critical. Vast geothermal resources exist deep beneath the Earth's crust, requiring advanced technologies for efficient harnessing. Many applications of Distributed Fiber Optic Sensing (DFOS), originally developed for upstream oil and gas, are now proving highly effective for geothermal projects.

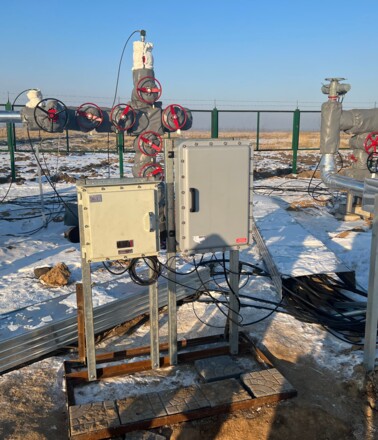

AP Sensing’s DFOS technology embeds fiber optic cables within geothermal infrastructure, creating an extensive network of sensors to monitor temperature, strain, pressure, and potential leaks.
Unlike conventional sensors, DFOS offers high accuracy and real-time insights, allowing precise tracking of temperature variations and identifying potential disturbances like leaks or microseismic events. This proactive approach optimizes operational parameters and addresses issues early, supporting sustainable geothermal production.
Key Advantages
AP Sensing's DFOS is a well-established solution for various applications, providing significant advantages such as:
Comprehensive Measurements
The ability to perform multiple types of measurements – including temperature, acoustic, and strain – using a single cable with multiple fibers. This capability enables simultaneous, real-time monitoring along the entire wellbore, enhancing geothermal reservoir understanding and supporting proactive responses to safety concerns while minimizing environmental impact and reducing operational downtime.
Reduction of Operational Costs
By offering precise, continuous monitoring capabilities, fiber optics help to optimize resource management, reduce costs, and enhance safety, making geothermal operations more efficient and economically viable.
24/7 Safety
Our solution delivers 24/7 continuous, gapless monitoring of geothermal reservoirs. The continuous optical fiber ensures that no area is left unmonitored, providing thousands of measurement points along the asset with a single passive fiber optic cable, enhancing overall monitoring capabilities and supporting effective decision-making.
Application Areas

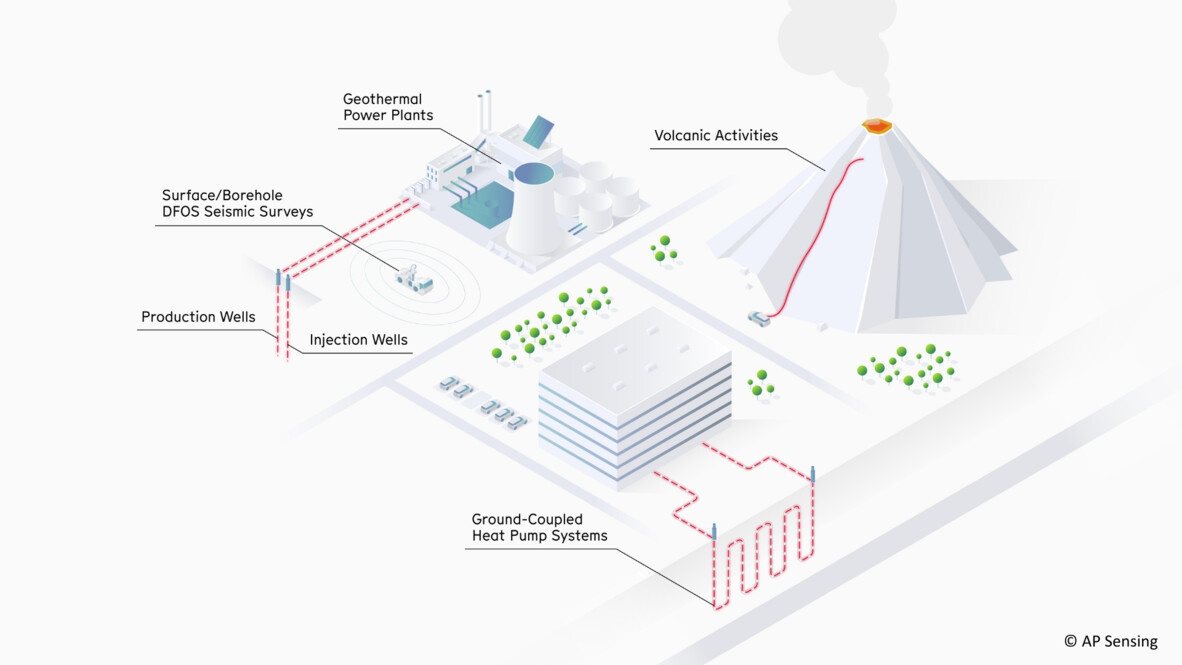

Our solutions provide robust and reliable asset protection in the geothermal projects, with key applications including:
Technologies Used in Geothermal Monitoring
Distributed Temperature Sensing (DTS)
AP Sensing’s DTS is based on the proven Raman optical time domain reflectometry technology (R-OTDR). AP Sensing uses its patented code correlation OTDR (CC-OTDR) that allows utilization of low optical power. It eliminates any problems with laser degradation and enables worry-free, long-term measurement stability.
AP Sensing’s DTS solution provides real-time temperature data, offering operators a precise and continuous view of well conditions. By monitoring temperature profiles and trends over time, operators can assess geothermal reservoir performance and ensure wellbore integrity 24/7.
Key Features:
- Multimode and single-mode instruments
- Single-/dual-ended configurations
- Longest measurement range of up to 70 km
- Spatial resolution of 0.5 m, measurement time down to 1 sec
- Modern, easy-to-use web interface for easy set-up and system configuration
- Wide operating temperature range from -10 to +60 °C
- Low power consumption
- DTS traces export in *.csv, *.witsml, *.las formats
- Laser Class 1M with low optical output for safe operations
Distributed Acoustic Sensing (DAS)
AP Sensing’s phase-based DAS system measures the acoustic vibrations on the fiber based on the principles of coherent optical time domain reflectometry (C-OTDR). The revolutionary 2P Squared technology of DAS provides a true linear measurement of dynamic fiber length changes caused by strain from acoustic/vibration signals or temperature fluctuations.
The DAS system captures acoustic data from individual zones, identifying abnormal patterns and providing real-time insight into well and reservoir conditions. This enables proactive maintenance. DAS effectively detects leaks, small flow changes, and flow behavior across the entire wellbore. DAS also generates flow data at each point along the asset and processes historical data for comprehensive monitoring. By delivering accurate measurements of frequency, phase, and amplitude, DAS helps mitigate potential site risks through early detection of various anomalies.
Key Features:
- The true, phase-based system allows for quantitative data interpretation
- Configurable gauge length
- Leading performance with standard fiber without additional amplification
- Performance tests based on SEAFOM recommendations
- Modular edge computing for real-time process optimization
- Laser Class 1 with low optical output for safe operations
Distributed Temperature Strain Sensing (DTSS)
AP Sensing’s DTSS is based on the Brillouin optical time-domain reflectometry (BOTDR) technology. BOTDR operates with a large optical budget on a single-ended fiber, being less affected by changes in fiber attenuation. BOTDR enables extensive and accurate measurements of both temperature and strain within the sensing range.
Key Features:
- Single-ended design – no loop required
- 80 km + measurement range with multiple internal optical channels
- High optical budget ensures outstanding measurement performance
- Practical and user-friendly web interface for easy commissioning
- Resistant to hydrogen darkening of optical fibres in harsh downhole environments
- Laser Class 1M with low optical output for safe operations
Key Takeaways of DFOS Advantages for Effective Geothermal Monitoring
- Temperature Monitoring: Continuous monitoring ensures efficient resource extraction and system stability.
- Well Integrity Monitoring: Essential for preventing operational issues and ensuring safety
- Reservoir Characterization: Provides critical insights into subsurface conditions, facilitating optimal project planning.
- Flow Monitoring/Profiling: Enhances understanding of geothermal fluid dynamics, supporting operational efficiency.
- Seismic/Microseismic Monitoring: Assesses reservoir behavior and mitigates risks associated with geological events through Vertical Seismic Profile (VSP) surveys. Tracking microseismicity is essential for assessing the success of injection procedures and confirming that existing faults remain inactive, preventing the potential for higher-magnitude seismic events.
With a proven track record and continued innovation, AP Sensing offers a completely integrated, end-to-end solution made in Germany. Our team works together with you to select the right combination of technologies to fit your requirements. We also provide onsite services, hotline and online support, maintenance and product training.
