HIGH VOLTAGE CABLE MONITORING AND LOAD MANAGEMENT
Today's power grids need to operate at the highest possible safe ampacity level.
To protect valuable power cable infrastructure, high safety margins are often applied. These can limit the efficiency of your power cable infrastructure. AP Sensing is the Distributed Temperature Sensing (DTS) and Distributed Acoustic Sensing (DAS) solution provider for your power grid. Our power cable monitoring solution balances the need for asset protection and power network performance optimization by efficiently pinpointing the root causes of cable failures and potential bottlenecks.
DISTRIBUTED TEMPERATURE & ACOUSTIC SENSING
AP Sensing's Distributed Fiber Optic Solutions (DFOS) for temperature and acoustic measurements, together with our proven Real Time Thermal Rating (RTTR) / Dynamic Cable Rating (DCR) engine and unique SmartVision™ asset visualization and data management software, give you the ideal solution to monitor and protect your power infrastructure. DTS provides continuous temperature monitoring of power cables, detecting hotspots and thermal bottlenecks, delivering operational status, condition assessment and power circuit rating data (RTTR/ DCR).
For subsea cables, a Depth of Burial module (DoB) can be integrated into the SmartVision software platform to calculate the Burial Depth of the cable. DoB changes are identified along the cable, enabling significant cost savings. In addition, exposed subsea cable segments can be detected and countermeasures initiated.
Additionally, abnormal asset behaviors are revealed by our Machine Learning Transient Alarm (MLTA) that would otherwise remain hidden within the temperature traces captured DTS systems. Our unique MLTA technique allows for the isolation of thermal transients along the monitored asset, so even small irregularities by cold- and hotspots can be detected, and triggers fast and reliable alarming.
DAS offers accurate cable fault detection and location, as well as Third Party Interference (TPI) protection both onshore (e.g. cable theft, digging and drilling) and offshore (e.g. anchor drops and drags). Providing efficient power cable condition monitoring by listening 24/7 to acoustic signatures, DAS helps you optimize transmission line and distribution networks, while reducing operational costs along the entire asset.
AP Sensing's SmartVision management suite shows the condition of your circuits at a glance, controlled by an easy-to-use graphical user interface (GUI). It seamlessly integrates many DAS, DTS, CCTV and other sensors into a single platform. Circuit layouts are mapped and color-coded to show the measured cable temperatures, as well as instantaneous changes in acoustic energy. Temperature graphs and hotspot tables are readily available. Sections of the cable route can be individually defined for flexible alarm levels and types. Points of interest, such as cable joints, horizontal drillings and manholes can be analyzed with historic trend analysis and historical data is always accessible.
As we develop our products from the research and manufacturing stages, to the project commissioning and maintenance, AP Sensing offers a completely integrated, end-to-end solution. Our team works together with you to select the right combination of technologies to fit your requirements. We also provide onsite services, hotline support, maintenance and product training.
OUR KEY FEATURES FOR HIGH VOLTAGE POWER CABLE MONITORING
Why you should choose AP Sensing!
|Distributed Temperature Sensing (DTS) and Distributed Acoustic Sensing (DAS) systems||...continuous and continual temperature data along the entire power circuit (DTS); fault location and protection from TPI (DAS).|
|Superior Raman / Code-Correlation Optical Time Domain Reflectometry (OTDR) technology||...best-in-class accuracy and longest range without strain crosstalk.|
|Comprehensive SmartVision management suite||...highly advanced key component for safe and optimized asset operation.|
|Integrated RTTR/DCR engine||…ampacity prognosis and intelligent data processing.|
|Remote communication network system||...retrieve data seamlessly from assets distributed over a large geographical area.|
|DFOS Sensor||...ability to cover large areas and longer distances with a single sensor.|
|Depth of Burial (DoB)||...real-time depth of burial analysis to minimize the impact on the surrounding ecosystem and prevent equipment failures.|

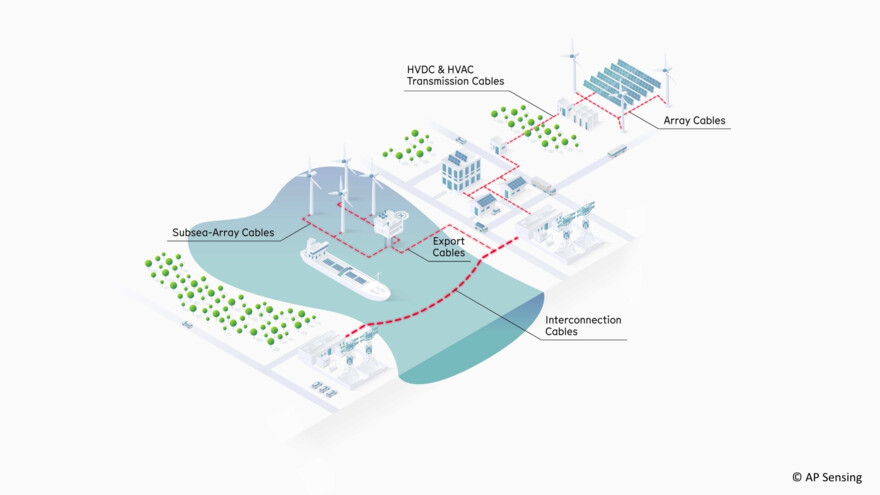

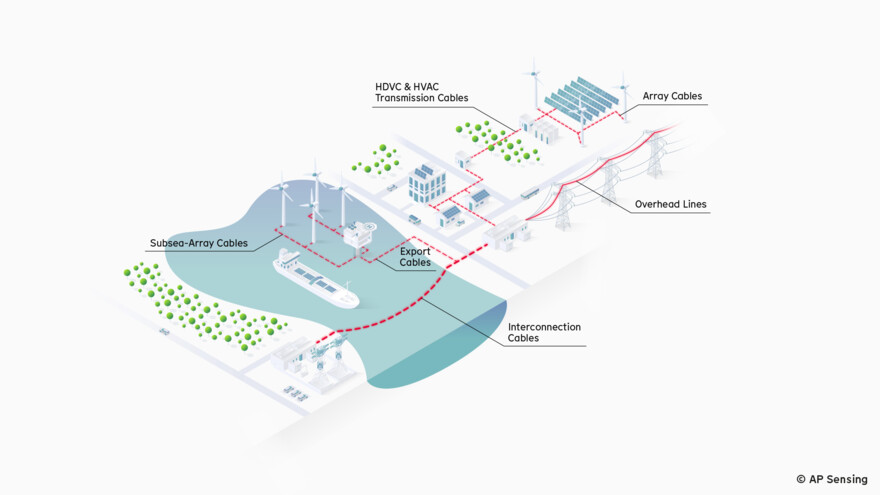

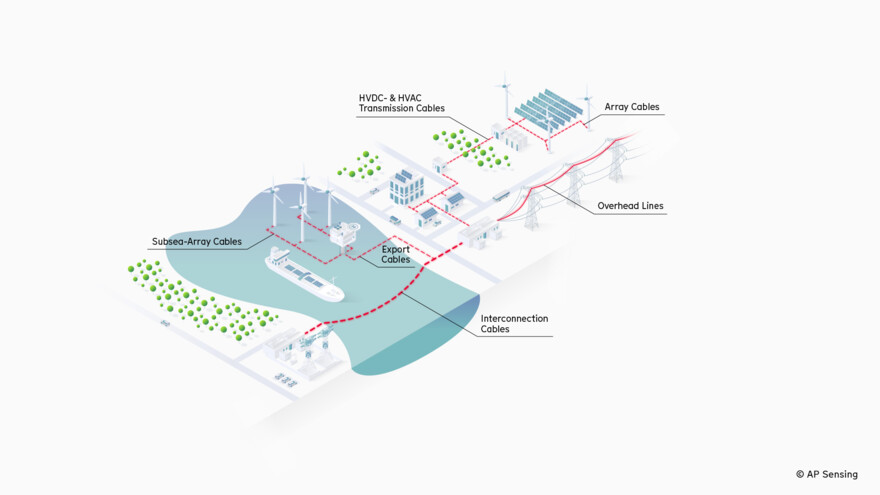

- Our solutions monitor key application areas, including:
- HVAC / HVDC underground power cables
- Transmission lines and distribution networks
- Offshore export cables, array cables & interconnectors

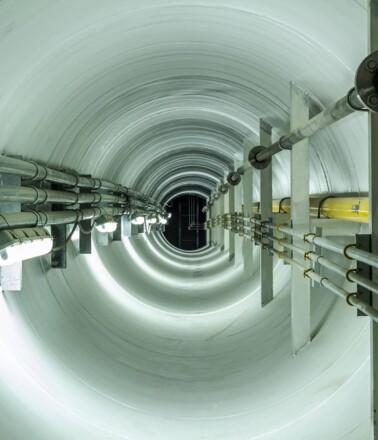

- Power cable joints, terminations, tunnels and trenches
- Overhead lines (pylons) & transformers
- Utility tunnels
POWER CABLE MONITORING DOCUMENTATION
Distributed Temperature Sensing and Real Time Thermal Rating
AP SENSING SUCCESS STORIES
We have hundreds of satisfied customers worldwide!
Olympic Park Brazil Updated Case
The Olympic Park is the main center of competition for the 2016 Summer Olympics in Rio de Janeiro. Covering over 1 million square meters and including 9 different sports facilities, a new power substation was constructed to handle the enormous power demand in the park. AP Sensing’s fiber-optic based DTS (Distributed Temperature Sensing) solution was selected to monitor this valuable infrastructure.
220 KV Power Circuit with Temperature Map Updated Case
A new 220KV underground power circuit traverses many different types of soil conditions along its 25 km length. AP Sensing’s fiber optic based DTS (Distributed Temperature Sensing) solution was selected by the network operator RTE (Réseaux de transport d'éléctricité), based on its reliability and ruggedness, as well as the innovative asset visualization capabilities.
Taiwan Mass Rapid Transit Updated Case
AP Sensing was selected to monitor the power cable in a new metro tunnel. This is the first power cable temperature monitoring system to be used in the Taipei MRT. The Linear Power Series solution continually monitors the temperature of high-voltage power cables. The DTS (Distributed Temperature Sensing) solution ensures a stable, safe and efficient power transmission and distribution.
115kV Underground Power Cable Saudi Arabia June 2020
Khudriyah-2 BSP is a new grid station situated on the outskirts of Dammam city, Kingdom of Saudi Arabia. Our Distributed Temperature Sensing (DTS) system was deployed to monitor the temperatures of two 115 kV underground circuits, providing thermal profiling and insights into the the actual conductor temperature and transient statuses with Real Time Thermal Rating (RTTR).
Underground Transmission Cable Monitoring Pakistan May 2020
AP Sensing is monitoring a 132 kV underground transmission cable for Karachi Electric. This cable experiences greater loads than nominal lines, as it feeds energy to a steel mill with high energy throughputs and frequent consumption cycles. Our solution provides end-to-end temperature monitoring to reduce thermal overload and cable faults. Additionally, RTTR and our asset viewer software enhance operational insight.
Underground Power Cable Utilizing DAS March 2020
An AP Sensing Distributed Acoustic Sensing (DAS) system is monitoring a 6 km high-voltage power cable in Germany. A key feature of DAS is the ability to immediately detect and locate cable faults. This helps optimize transmission and distribution networks, and reduces costly and unnecessary operational costs and asset downtime.
Kriegers Flak Offshore Wind November 2019
Denmark's largest offshore wind farm required a reliable, high-performance solution for protecting and monitoring cable loads and immediately detecting faults. 6 DTS units and 9 DAS units are in use for monitoring 300 km of this asset; AP Sensing's SmartVision visualization software is utilized for a real-time graphic overview of all temperature and acoustic data.
Underground Power Monitoring Skanste Riga Aug 2018
An AP Sensing fiber-optic DTS (Distributed Temperature Sensing) solution was selected to monitor power cables on two underground circuits in Latvia. This successful installation involved one DTS N4425A device with six channels, as well as SmartVision and RTTR (real time thermal rating).
Press Release Fiber Optic Sensing Association NOV 2017
The Fiber Optic Sensing Association (FOSA) today released details on more than 1,300 installations of distributed fiber optic sensing (DFOS) around the world, the largest representative sample ever published. AP Sensing is proud of our global contributions for pipeline leak detection, high voltage power cable monitoring and fire detection.
Offshore Windpark DTS and DAS Monitoring SEPT 2017
The operators of an offshore wind farm located off the west coast of Denmark wanted a monitoring solution to locate cable faults immediately after they occur. They chose AP Sensing for our unique combination of DTS (Distributed Temperature Sensing) and DAS (Distributed Acoustic Sensing) capabilities.
Subsea Power Cable Monitoring with SmartVision and RTTR FEB 2017
The oil platform operator Engie needed a monitoring solution for their medium voltage (35kV) subsea power cable, which provides the power for the platform operations. AP Sensing was selected not only because of our ruggedness, reliability and superior support services, but also for our SmartVision™ and RTTR capabilities.
Subsea Power Transmission Link Sicily Calabria July 2016
The extra high voltage power links run between power stations in Sicily and Calabria, crossing the Messina straits. To monitor and protect the overland sections of this important link, AP Sensing’s fiber-optic based DTS (Distributed Temperature Sensing) solution was selected.
Wind Park Subsea Power Cable Monitoring Shanghai Oct 2010
The Donghai Bridge Wind Farm in Shanghai is the second largest bridge in the world. The wind farm is the first commercial offshore wind park, and was completed prior to the 2010 World Expo in Shanghai. AP Sensing was selected to monitor the subsea power cable with an approximate length of 15km.
Transmission and Distribution Network Jan 2013
A leading Australian network operator wanted to gain monitoring insight into his distribution network: to monitor the medium-voltage power cable’s condition, identify hotspots and bottlenecks, and to minimize risks and costs for maintenance and in emergency situations. The operator can now operate his network at the highest possible safe ampacity level.
Power Cable Tunnel Monitoring Shanghai Mar 2010
The World Exposition 2010 Shanghai China (Shanghai Expo) was held at the waterfront area on both sides of Huangpu River in Shanghai from May to October, 2010. AP Sensing provided its leading Distributed Temperature Sensing (DTS) system, the “Linear Power Series”, to monitor and secure the first 500kV power cables in Shanghai installed in a power cable tunnel over a distance of 20km.
Power Circuit Monitoring Czech Republic Jan 2010
In 2009 Brugg Cables installed a new 110 KV power circuit within the city limits of Prague. To protect valuable assets with Distributed Temperature Sensing (DTS) technology the end customer chose to equip the new circuit with a fiber optical sensor cable and permanently monitor the temperature profile with an AP Sensing Linear Heat Series instrument.
High Power Underground Cable Monitoring March 2010
Underground utilities are “the power” beneath large cities. They feed the cities with electric power, gas and water. Failures in this sensitive infrastructure are costly and therefore USI Power selected AP Sensing’s outdoor DTS instrument to permanently monitor the temperature along a 220kV power circuit connecting Manhattan and Queens.
380 KV Power Circuit Monitoring March 2011
In 2010 a new 380KV power circuit was put into operation as part of a nationwide power grid improvement. Near Florence the high voltage circuit has buried sections in close proximity to a very populated valley and a historic church. The primary route was completed in trenches filled with thermal sand. The project also included challenging road crossings that used horizontal drilling to complete the construction.
